AC Condenser Compressor Replaces Copeland ZR42K5E-PFV-830, ZR42K5-PFV-130, ZR42KA-PFV-830

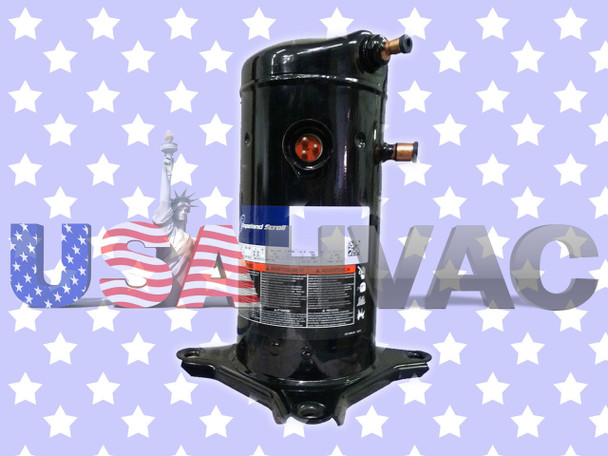

This is a 3.5 Ton 208/220 Volts 1-Phase Direct Factory Replacement Copeland Scroll Compressor. The Copeland Model # is ZR42K5E-PFV-800. It is rated at 42,200 BTU.In some instances, small piping changes may be required. Thanks for looking and good luck!

This compressor is designed to replace old Copeland numbers: ZR42KA-PFV-130 ZR42KC-PFV-130

TECHNICAL SPECIFICATIONS

Capacity (BTU/HR): 42200
Type: Scroll
Refrigerant: R-22
Input Voltage (V): 208
Input Voltage (V): 230
Number Of Phases: 1
Frequency (Hz.): 50
Frequency (Hz.): 60
Run Capacitor (uF/V): 55/370
Start Capacitor (uF/V): 88-106/330
Rated Load Current (A): 22.1
Maximum Continuous Current (A): 31.0
Locked Rotor Current (A): 104.0
Crankcase Heater Included?: No
Suction Line Location: 2
Suction Line Height (Inches): 11-1/8
Suction Line Configuration: Stub Out
Suction Line Size (Inches): 7/8
Discharge Line Location: 3
Discharge Line Height (Inches): 15-3/8
Discharge Line Configuration: Stub Out
Discharge Line Size (Inches): 1/2
Overall Compressor Height (Inches): 16-7/16
Mounting Base Dimensions (Inches X Inches): 7-1/2 x 7-1/2.


To properly install a Compressor you need to have and use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. If the compressor is damaged due to improper installation procedures, the liability falls to the installer. All Sales are Final and there are no warranties!
