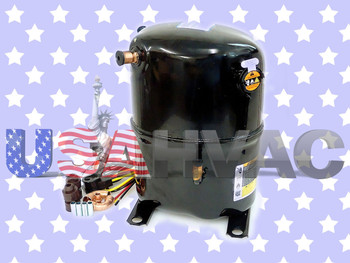

AC Condenser Compressor Replaces Copeland CR16K6-PFV-830, CR16K6-PFV-930

This is a 1.5 Ton 208/220 Volts 1-PhaseDirect Factory Replacement Compressor (Copeland) The Copeland Model # is CR16K6-PFV-875. This is Copeland's recommended replacement for old Copeland Model #s CR16K6-PFV-830 & CR16K6-PFV-930. It is rated at 16,000 BTU.Thanks for looking and good luck!

TECHNICAL SPECIFICATIONS.

Tonnage: 1.5
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4
Line Connection Discharge ID (In) 3/8
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Application OEM A/C Equipments.
Includes Crankcase Heater.

The Required Run Capacitor is 25 uf 370 volt. Most condensing unit capacitors are dual capacitors, meaning they operate the compressor and the fan. To purchase the correct capacitor you will need to know the uf rating on the fan.

Start Capacitor rating, if needed, is 189-227 250 Volt <>

To properly install a Compressor you need to have and use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. If the compressor is damaged due to improper installation procedures, the liability falls to the installer. All Sales are Final and there are no warranties!
