AC Condenser Compressor Replaces Ruud Rheem Weather King 55-20892-20, 55-20892-66, 55-20892-65

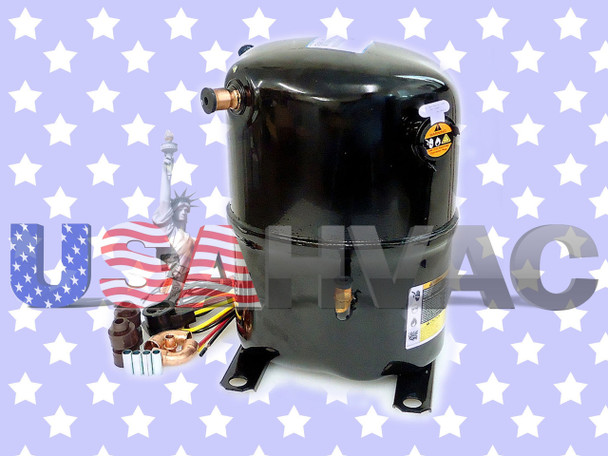

This is a 3 Ton 208/230 Volts 1-Phase Direct Factory Replacement Copeland Compressor with Model CR38K6E-PFV-875. In some instances, small piping changes may be needed. Thanks for looking and good luck!

TECHNICAL SPECIFICATIONS.

Tonnage: 3
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4 .
Line Connection Discharge ID (In) 3/8.
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Height (In) 14 13/16.
Width (In) 9.
Length (In) 9 7/16.
Run Amps@BtuH 17.4.
Application OEM A/C Equipments.
Includes Crankcase Heater.

Run Capacitor is 40uf 440 volt. Most condensing unit capacitors are dual capacitors, meaning they operate the compressor and the fan. To purchase the correct capacitor you will need to know the uf rating on the fan.

Start Capacitor. 189-227 330 Volt

To properly install a Compressor you need to have and use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. If the compressor is damaged due to improper installation procedures, the liability falls to the installer. All Sales are Final and there are no warranties!
